| The
ULTRA-PRAM was conceived by Roland Moose
of North Carolina. He wanted a portable yet robust boat for daily
fishing trips - one that was stable and had plenty of room for his fishing
gear. So, Roland Moose of North Carolina contacted me and asked
if we could collaborate on a design. The end result is the ULTRA-PRAM.
It is a 2 module portable that, when nested, will fit in his pick
up truck for transport to the water. It will also fit in some
larger SUV’s, I suspect. The key feature of the design is
it’s small size on the outside, and big size on the inside.
Although only 99 inches long, the ULTRA-PRAM can seat 2 adults
and 2 children comfortably, and still have room for gear. The
recommended minimum power is a 40 pound thrust trolling motor,
and it will take up to a 4 hp outboard. It can also be rowed or
paddled, for those close in, shallow excursions.
Ultra-Pram Specifications:
- Length: 99 inches (plus optional center module)
- Width: 48 inches
- Width at chine: 38 inches
- Height: 21 inches
- Weight: 85 pounds
(without battery)
- Draft: 5 inches
(motorized)
- Max load: 600 pounds
- Motor: Electric to 4 hp max
- Hull Speed: 4.5 mph
- Nested Dimensions: 57" long - 48" wide - 27" deep max.
Design Features:
- 2 modules, Bolt together, Nesting Hull
- Stand up stability for fishing and hunting
- Seating for 2 adults and 2 children
- Abundant storage for camping gear
- Fits in any truck, most SUV's and some RV's
- Can be set up and operated by one person
Safety Features
- Excellent freeboard
- Built-in buoyancy chambers
- Rugged Plywood construction
- Can be fiberglassed for extreme use

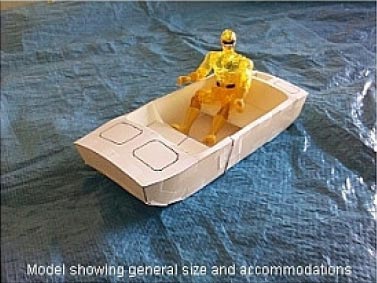

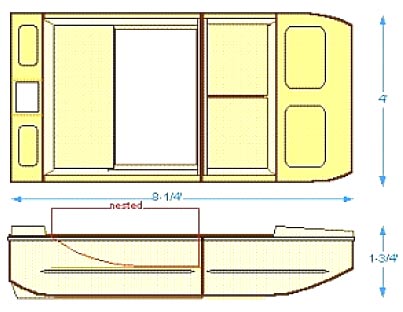

The general outline of the design is fixed, and the plans are complete in describing all necessary
assembly steps. However, there is room for the builder to modify the interior to satisfy their particular
needs and requirements. Roland, for instance, will put a tall removable fishing seat in the aft module,
replacing the sliding seat shown on the plans. Other different storage compartments could also be
created, perhaps for a cooler, or a water filled fish box. The options are many. I have included in the
design 2 buoyancy compartments, for safety purposes. These could also be modified to allow
storage for larger items, such as camping gear. The end result would be a customized boat for a very
specific use.

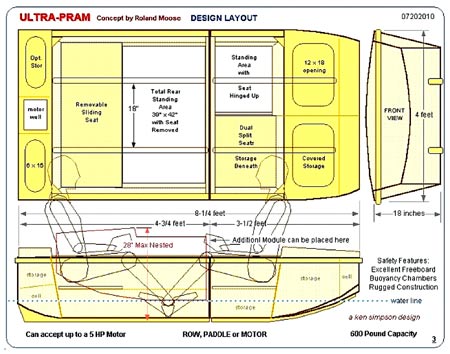

As shown in the layout, under seat storage is available, for easy access. Seating arrangement varies
depending on use and load. The addition of a heavy outboard motor requires a different seating plan
than the use of a light trolling motor on the transom. The battery can be placed under either seat.
Assembly is very straight forward, as the size and shape of the various panels are easy to cut and fit
together, with simple glue and screw technology. Final assembly uses my ‘Tape & Glue Process’ for
absolute sealing of all external and internal seams, for strength and waterproofing.
click image above to enlarge

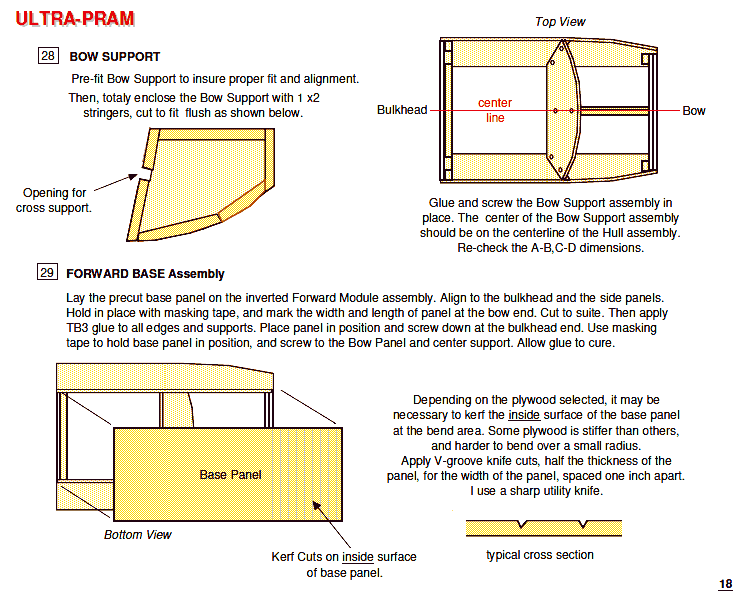

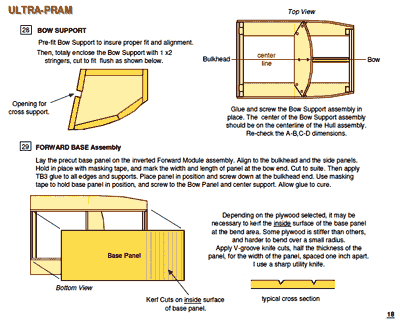

As can be seen from the assembly page above, only average woodworking skills are need to put
ULTRA-PRAM together. There are no fancy curves, and mostly straight sides. Some skill is required in
the ‘kerfing’ of the forward base panel, but even there the builder has options, such as strip planking.
Many of the building procedures used in construction have been tested on previous designs, and have
proven safe and effective for small boat design. Overall, this should be a fairly quick build, and when
complete it takes up less than 8 square feet of floor space for storage (sits on transom end).
click image above to enlarge

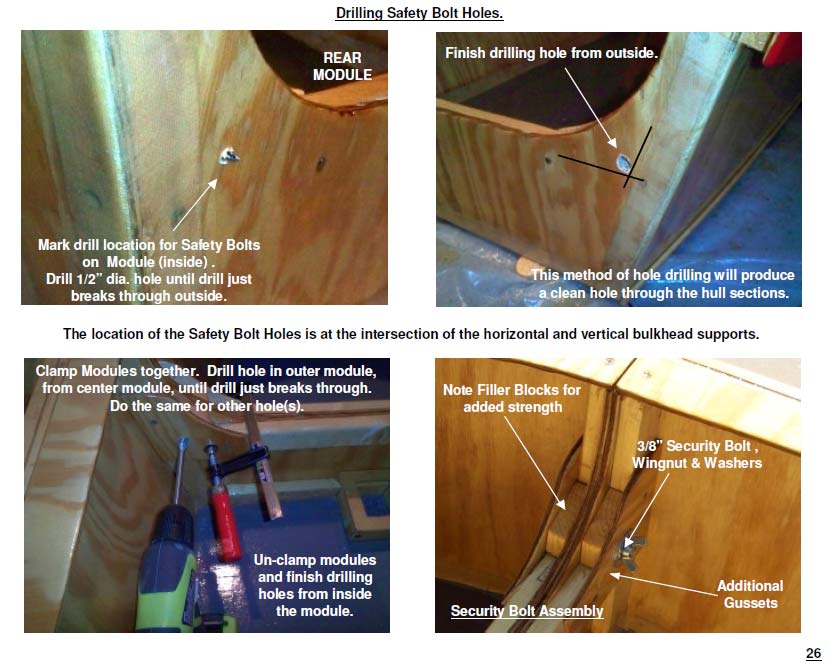

Securing the two modules together is of some concern to some people. The method used is the bolt
and nut system. The modules are clamped together and 1/2 inch holes are drilled at a defined location
through the common bulkheads. This allows the use of 3/8-16 UNC Hex Head Machine Bolts to be
installed at the time of assembly at the water. This method has proven itself on many of my designs,
and it simply is the easiest and most secure way of joining the 2 modules together. The bulkhead
areas are designed to provide strength in this area, and distribute the torsional load up, down and
sideways on the bulkhead face for greater safety.

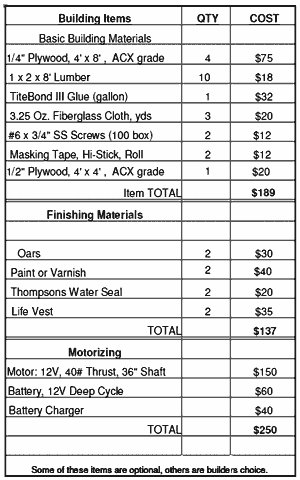

Finally, what does it take to construct the ULTRA-PRAM? The above item and pricing data should
provide a good overall view. Actually it is under $200 for the basic hull materials (plywood, screws,
glass cloth and glue). Finishing materials (paint, water seal etc.) add another $60. And then there is
safety equipment, like PFD’s and Oars. Then the power plant, something you have on hand, or have to
purchase.
ULTRA-PRAM was designed with a specific purpose in mind: An all-round utility boat capable of
transport without a trailer, providing safe family fun on the water, or the sportsman access to remote
areas, with an easy to build, easy to set up boat that can go just about anywhere.
Happy Boating, and always wear your Personal Flotation Device!
Ken Simpson
www.PortableBoatPlans.com
www.duckworksbbs.com/plans/simpson/
*****
Ultra-Pram Plans available for download at Duckworks - CLICK HERE
|
