It's discouraging that books and articles on navigation often call for hundreds (if not thousands) of dollars' worth of electronic gear, complicated formulae, and three-decimal place accuracy. Happily, most of this stuff is simply unnecessary for navigating small craft. In fact, you may end up with a better "feel" for where you are and where you are going than when you read your longitude and latitude on an LCD display. This is not to say that electronic navigation aids can't be helpful and fun, but personally, I'd rather spend the money on a bigger boat
or a longer sailing vacation. After all, Captain Joshua Slocum sailed around the world with nothing more than an alarm clock, a barometer, and a sextant. You won't need the sextant unless you're going offshore, and "Cap" Slocum's clock was missing one hand!

If you're like me, you'll probably be sitting on a corner of the chart to keep it from flying overboard, with the sheet in your teeth and the boat plunging about, and you'll be needing the course now! Hence, your navigation aids should be impervious to rain and spray and should be simple enough to use while holding the tiller with one hand.

Speed, Distance, Time

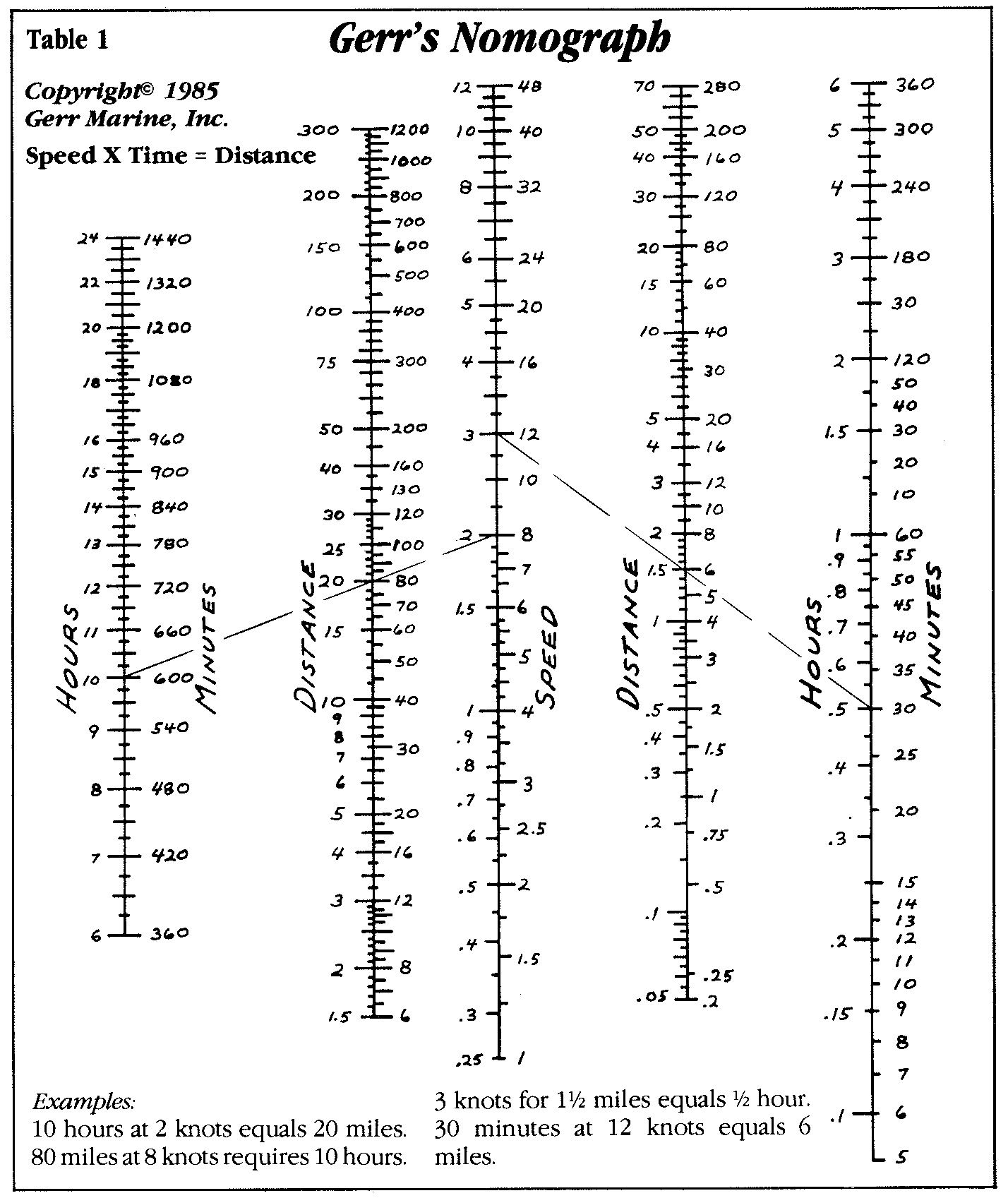

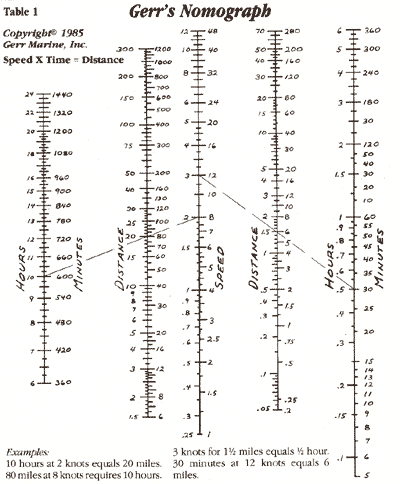

One of the most basic navigation problems is knowing how far you've gone, or how far you have to go. I made up a nomograph (commonly found in applied engineering handbooks) that can solve any speed, distance, time problem with speeds from 1/4 to 48 knots and times from 5 minutes to 24 hours. I call it Gerr's Nomograph (below).

click for larger version

It was a chore to make up, but it's a dream to use. All you do is lay a straight-edge from your speed to the time you have been running and read your distance off the appropriate distance scale.

Actually, Gerr's Nomograph is four nomographs in one. The right hand side solves problems from 5 minutes to 6 hours, and the left side solves problems from 6 lo 24 hours. The speed scale in the center is numbered from 74 to 12 knots on the left and from 1 knot to 48 knots on the right. Accordingly, the distance scales are numbered for the lower speed range on their left sides and the higher speed range on their right. A bit of practice will enable you to read the proper scale for your problem and to read the numbering increments on that scale. Covered with clear contact paper, it will be impervious to dampness.

You can determine any one variable if you know the other two. Thus, you can find time if you know speed and distance; distance if you know speed and time; and speed if you know distance and time. Another nice feature of the nomograph is that you can get alternate solutions for a desired course, great for planning cruises. It works for either knots or miles per hour. If you enter knots in the speed column, then your distance answers will be in nautical miles (6,080 feet). If you enter mph, then your distance answers will be in statute miles (5280 feet)

How Fast Are You Going?
Most people look at their knotmeter, stream a log over the stem, or stick a "wand" in the water to determine how fast their boat is going. But you needn't do any of this. All you have to do is glance over the side for a moment.

Most sailors know that a displacement hull's top speed is equal to 1.34 times the square root of the boat's waterline length. That is because water makes surface waves of precise lengths depending on how fast your boat is going. This is very convenient for judging speed (Table 2). It's also a good way to estimate how fast the "other guy" is going, as it's simple to see the wave pattern along his hull. (You do have to have some idea how long his boat is, though.)

For navigation purposes, however, the important thing is the large difference between the wavelengths at different speeds. You will have little difficulty telling the difference between the 1/2 foot wave lengths of one knot and the 2-1/4-foot wave lengths of two knots. Discount spurious waves that are kicked up by plunging and turbulence. With a little practice and common sense you will soon be an expert at making speed estimates to a quarter of a knot.

Copy scales directly from your most used charts - Two on each face - Place widely differing scales on the dsame face to avoid confusion - Cover both faces with clear contact paper and coat all with clear floor wax or varnish (click image for larger version

The Distance Rule

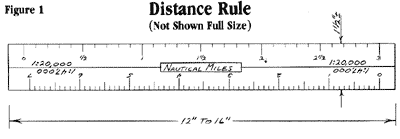

Once you can tell how fast you're going and can solve speed, distance, time problems, you can plot and lay off courses on your chart with a simple distance rule you can make yourself (Fig 1, above).Take a piece of white oaktag (heavyweight, smooth-surface white cardboard), cut a strip around 12 to 16 inches long by l-1/2 inches wide, and carefully draw on the scales for four of your most common chart sizes, copying directly from the legend on those charts (two scales on one face and two on the other). Then, cover both sides of the scale with clear contact paper and, finally, a couple of coats of clear floorwax (good
clear varnish would also do nicely).

To lay off a course place the distance rule on the chart - making sure you are using the correct scale - and draw a line between where you are (starting point) and where you want to go (destination point). Actually, you usually don't even need to draw a line, just make a dot at the starting and destination points and read the distance right off the rule. There's no clumsy stepping off with dividers, you need only one hand, and it's very quick.

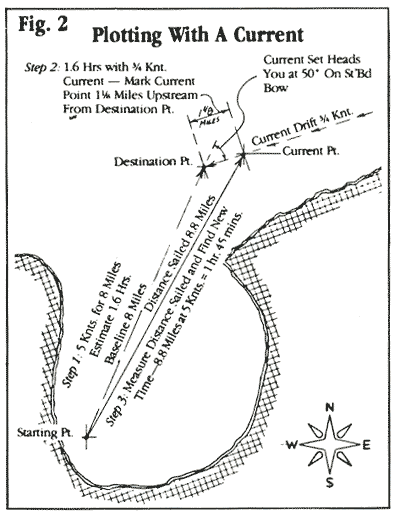

If you think there's a significant current running, mark the destination point and then lay the distance rule from that point in the direction exactly opposite to the current flow or set (Fig. 2, below). Current speed is called "drift," current direction is called "set." Say you glance at a buoy (or the tide and current tables) and estimate the drift at 3/4 knot and the set to be heading you at about 50 degrees on your starboard bow. You see on the distance rule that the baseline distance to your destination is 8 miles; and you know you're going about 5 knots. From Gerr's Nomograph, you find that it'll take just over 1-1/2 hours to go this course (8 miles devided by 5 knots = 1.6 hours). Using Gerr's Nomograph, you can also see that the current will set you off about 1-1/8 miles (3/4 knots x 1-1/2 hours = 1-1/2 miles). Simply mark a dot (current point) at 1-1/8 miles in the direction opposite to the current flow (upstream) from the destination point. Place the distance rule between the current point and the starting point. This gives the course to steer and the new distance, in this example, 8.8 miles. The new time - 1 hour and 45 minutes - can be determined from Gerr's Nomograph in a jiffy. To complete these steps only takes about 90 seconds.

On your new course, you will appear to be aiming for the current point (not your destination point), but because of the current, your boat will actually be sliding sideways, so you will end up at your original destination point. This system is not exactly geometrically accurate, but how often have you been in a current of perfectly constant speed and direction? If your course is particularly long or if there are dangers nearby, then you must take additional time to be more precise and be sure to stay well to weather of any obstacles. Also keep in mind that the slower you're going, the greater the relative effects of current set and drift. When ghosting along in a fog, for instance, you certainly must take special care with your calculations.

In practice, though, I've seldom found that I needed any more accuracy than the above methods give. Bearing angles taken in a small boat in a stiff breeze are always going to be off by a degree or two (or more) because of the motion of the boat and your closeness to the water. With so many variables, and conditions so poor for taking bearings and getting fixes, you can't worry about the decimal points. Get the big picture in nice round numbers, and you'll always know where you are.

Next Month: A Homemade Tacking Computer.
