Greenland style kayaks by
Ron Friedman Greenland
kayaks are an ancient craft utilized by Inuit peoples from the
far north. Traditional use was for hunting and methods of building
included beachcombing for months locating driftwood, bone, and
skin from sea animals. This historic craft was recreated over
a weekend in Bordentown, NJ, through Paint
Island Canoe and Kayak’s first skin on frame kayak class.
Four participants from Baltimore, NY, South Brunswick, and Bordentown
spent Friday evening through Sunday building nontraditional Greenland
kayaks. These craft are custom designed to the kayaker so specific
body measurements are taken, distance from finger tip to finger
tip for length of boat, height of the fist with thumb extended
for the backdeck, distance from small of back to the foot with
knees slightly bent for the footrest, and then height of the knee
for the masik which supports the knees while paddling.
Under the guidance of, Bob Foote,
kayak and canoe instructor, the attendees used modern materials
accessed from local hardware and lumber yards. Pine was used for
framing members, plastic lath was heated in an oven and bent into
shape for the ribs, glue and brass screws replaced the traditional
lashing methods of the native peoples. Canvas was used for the
skins and nylon rope for deck rigging. This method allowed for
a very quick build time at a materials cost of around $350.00.
For traditional building methods information can be found at www.qajaqusa.org
on the web. Additional classes are being planned for skin on frame
as well as stitch and glue boats. The class was held at RiverView
Studios at the foot of Farnsworth Avenue overlooking the Crosswicks
Creek.
For additional information call
Paint Island Canoe and Kayak 609-324-8200 www.paintisland.com
Pictures of the building
sequience:

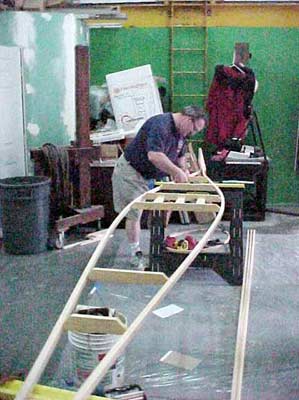

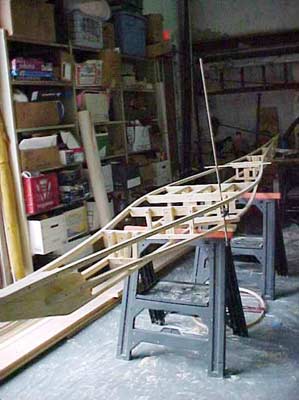

Brian's top frame with backrest and foot
rest positioned

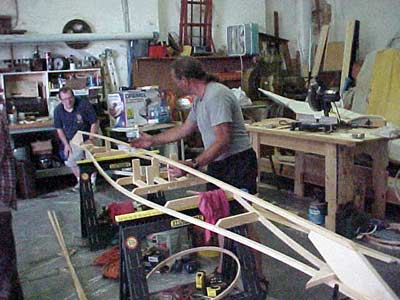

Brian, making sure his keel is true

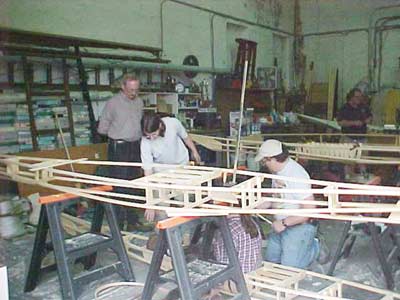

Peter, Rebecca, Jim Parker

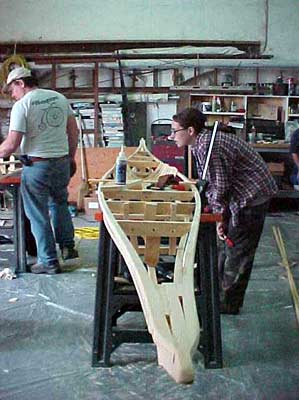

Rebecca 's frame less the masik. Rebecca
is a
vo-tech student adept at using all the shop tools.

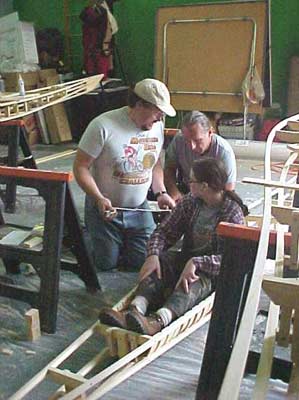

Determing masik position

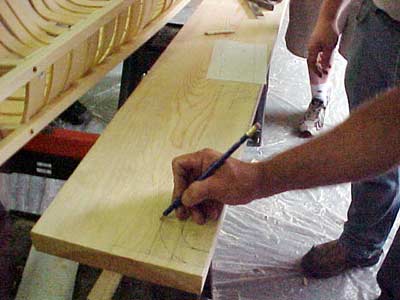

Peter, tracing out the masik

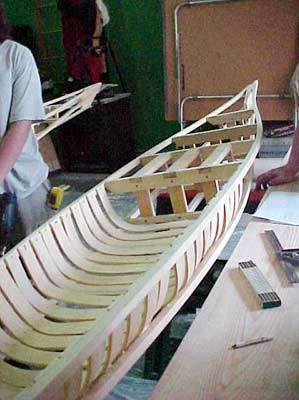

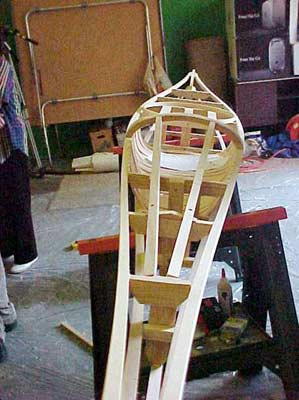

Rebecca's plastic ribs in place
Pete's frame complete
George's 25" beamed frame"

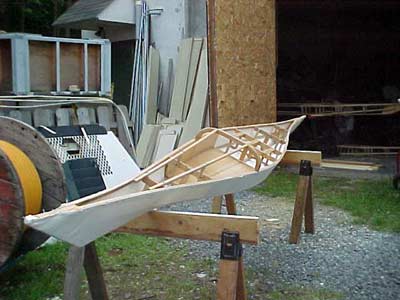

Bob's hull skinned with stainless staples

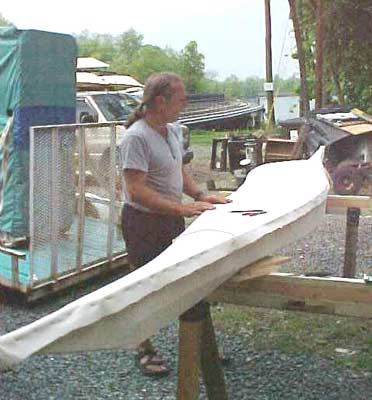

Bob's fully skinned

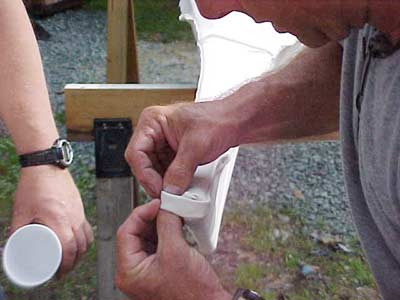

Folding the skin at the bow detail

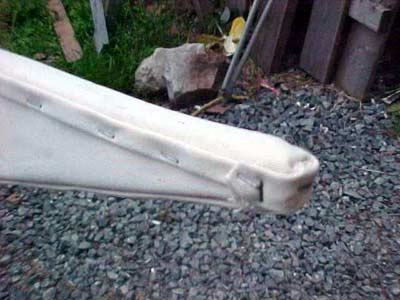

Bob's bow complete

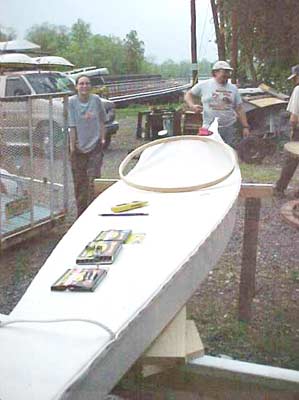

Placing the cockpit coaming

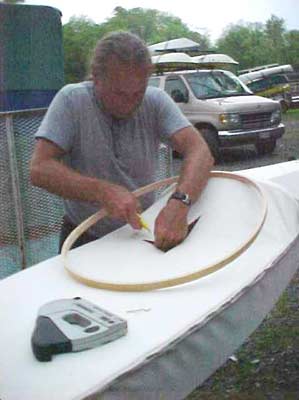

Cutting the cockpit opening
Coaming placed and skinning detail

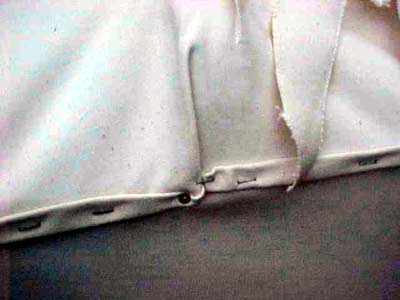

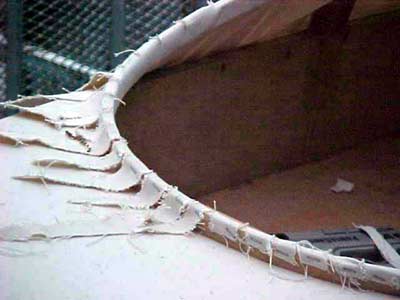

Pleats below the coaming, most of the wrinkles came out

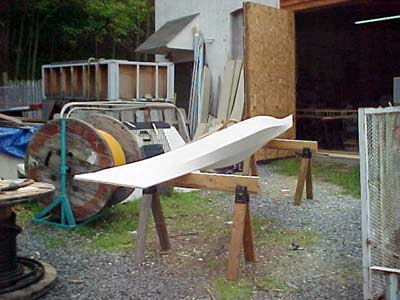

Bob's kayak completed
|
