Notes on the Schooner Cartaphylla

Cartaphylla may be designed by and for dreamers, but it proves a happy point. If you’re willing to forget popular notions of how a boat should look, and design it for the task & tools at hand, you may come up with a craft that’s unique, affordable and capable. And it might even look good. Want to boldly go where everyone’s already been, only cheaper?? Read on….

The task at hand here is getting a couple across an ocean neither broke nor broken, and hopefully undivorced. The tools at hand are a garage or shelter, and a few power hand tools. A bench saw would be a big help, but one can get a Triton-type set up where you bolt your power saw into a purpose made bench. If you have a thousand to start, and a job, you can pay for this boat as you go.

The major compromise that makes this design work is the narrow beam, entirely appropriate for schooners, but unusual in one of this size. The slim displacement hull imparts speed & stability, & the ability to build it in even an English garage (sorry Gav!)

Cartaphylla has a single hard chine, & is built from sheet ply/epoxy, glassed outside. She is built upside down on a strongback in the standard manner documented exhaustively elsewhere. Marine ply is 12mm, except the heavier bottom, 2 x 9mm which also helps around the bow where the curvature gets a bit radical. Ply/lumber bulkheads and a couple of ply ring frames are positioned on the strongback and fixed by chine logs, stringers & most importantly the keel pieces.

This boat can be ballasted internally or externally. As the keel is the biggest hassle, I’ve taken the law into my own hands here, and specified a 17ft length of lead filled used six inch drill pipe. Get a bit that’s threaded one end if possible so you can cap it. There are many ways to do the keel but I like this one: Make up the keel drawn in the profile from 25 sq ft of 6mm steel plate welded to the top edge of your pipe, The whole shooting match weighs in at 2500 lbs or 47pct ,and if you can keep this boat upside down with that lot on you’re a pretty clever bloke. The shape of this keel is as drawn but extending 150mm inside the wooden part of the boat, ie beyond the hull keel line. The wooden part of the keel is two pieces of 25 x 150mm ply, gapped 6mm, full length on edge. In the cabin the top edges of these take the floor sheet, which lifts anyway so you can get at the bilge. These ply (or laminated) keel pieces are fixed to all bulkheads with epoxy and glass tapes, and braced till the whole shebang is stiff and strong.

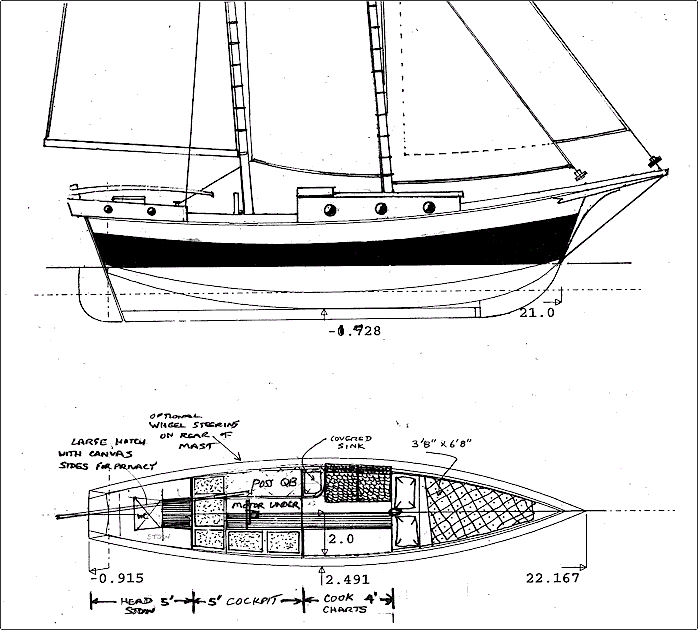

Features from stem to stern,,,,,

1/ The laminated ply bowsprit 4’ 6", could be designed to pivot back. Pulpit recommended but not drawn.

2/ Foredeck is turtled in centre but level from foot of cockpit coaming forrd. This creates an extremely safe work area, at the expense of needing a deck drain and only 2 feet clearance over the forrd section of the bunk. Anchor rides under sprit, small well forrd of bunk for warp.

3/ There is no forehatch (porthole vents) as the foredeck and forrd deckhouse fit Sqeezebox, the sailing lifepod tender. She doesn’t impose badly parked upside down with the two foredecks cheek to cheek.

4/ V-Berth has flotation, 50 gallon water tank and lockers under. The 500lbs of water balances the lazzarette, the ships store!

5/ Two’s company, three’s a crowd applies in this little saloon, though it does have a 24" sole & 4’8" headroom. The beam precludes a lot of clambering over other bods-you can sit cook read eat navigate and sleep comfortably. If you want to stand up you can do so in the companionway or cockpit. The utility bench is a foot deep only, containing lockers, but with footspace under so you can stretch right out in the settee/chairs opposite. The locker door is hinged to the top so you can swing it up and extend the bench to 30 inches or half the boat wide. You can seat 3 for a meal using the end of the bed. Theres a tight quarter berth which is more for extreme conditions use - you’d be safe from falling and possibly even getting out. Removal of rear cushions (these are thick to fill the void created under the 6" side deck) makes this berth a lot wider at 21" than it appears in the drawing. The seat side-table folds to cover a cabin bulkhead porthole, and a map taped to it can be read from the helm. Note that these seats could be widened to two armchairs if a builder wished. This cabin is a cosy little haven unless you try to fit too much in it. Its small but not cramped, and the expanse of bed relieves its confinement visually.

6/ Saloon comfort comes partly at the expense of side-decks which a the width of a foot (not a foot in width!)

7/ The cockpit is large but with a narrowish 18in self draining sole which cant scoop up too large an amount of ocean. Its set fairly high but sheltered by coamings that extend from the cabin to the poop, which acts as a backrest for tiller steering. Alternately a wheel could be mounted on the mainmast base. Forrd of the mast is a good spot to corral guests with the loose-footed mizzen unlikely to scragg even the most errant landlubber.

8/ The poop deck enlarges the lazarrette into a room which will hold spare sails and stores with enough room for the dread bucket. You can take your ease with full privacy & seated HR under a large hatch with canvas fold-in sides.

9/ Auxiliary is intended to be an electric with a bank of four gel batteries and 2 spares distributed about to trim the ship. The shaft would be horizontal (dotted line in drawing) with the prop in the usual cutout between keel and rudder.

Unfortunately the costs of commercial marine electrics are prohibitive, and a second hand Yanmar or similar would seem the best solution. A small stern drive or outboard would also be possible. This is definitely an area that’s flexible.

The author would also like to point out that theres a good spot to row from just forrd of the mainmast!

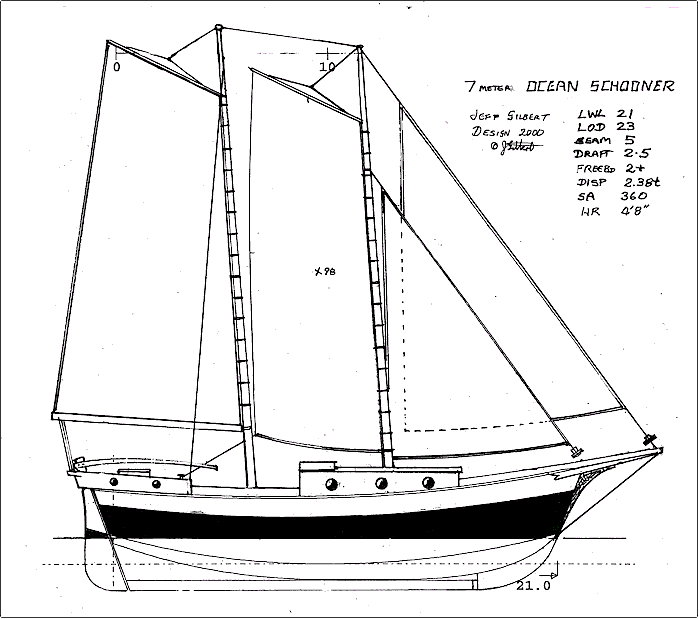

10/ Masts are keel stepped spruce spars and sails can be home made (developed panel designs available from the author). Second hand rigs and sails are a viable cost saving alternative. Also an American company makes sturdy 20ft flagpoles which telescope to four feet and would be brilliant for passing the low bridges in European canals. This boat would be eminently suited to a combined sea and inland voyage, with her shoal yet seaworthy design and narrow beam.

11/ Sails look well tan or maroon. The sails can all be single-handled without winches from the cockpit area. Sails should be made strong with slab reefing, and the only spare sail needed is mizzen that can be used as a spare main and boom tent in the tropics.

Cartaphylla can be sailed alone and really booted along by two. Theres is no need to run a spinnaker as she goes belts downwind wing and wing, high bow in the air. The high ballast ratio means shell stand up well to her sails…this boat will continue to turn the miles in crook weather. Loading beyond the waterline at the start of a trip wont worry her. Sails are divided into small manageable chunks and in time the sailor will find theres a combination for all conditions, and that in certain conditions shell hold course with just a string on the helm.

Don’t be fooled by Cartaphylla’s sleek lines and elegant spars into thinking this boat is a show pony. Shes as strong as a Mallee Bull, will do her hull speed of 6 knots anytime, and will get you across the pond, no worries.

Copyright Jeff Gilbert

jgilbert@dynamite.com.au

September 2000
