It floats ... and it rows quite nicely, even with last-minute homemade
oars. I just had to get the news out. |
| Yesterday was a beautiful crisp
Fall day in Sacramento. A perfect day for joining the ranks and acquiring the title of
"amateur boat builder." My son and I, with minimal fanfare and after a couple of
quick pictures, loaded PS#1 into the back of ol' WT (my Weekend Truck), drove to his house
and picked up his son, Christopher (it's his boat, but he did not know it yet). We drove
directly to Nimbus Lake in Folsom and arrived at my favorite launch site, a somewhat
secluded county property with a shallow-angle gravel ramp, two outhouses and a small
parking lot. |
No trailer needed for this one.
The Pointy Skiff fits with room to spare. The lift gate even closes. I can even slide the
boat in and out without help.
|
Christopher is now told the good news:
"I have a surprise for you….this is your boat, not Papa’s." Notice how
the builder took advantage of the gap in the inwale (better known as lack of advance
planning) with a non-traditional cleat installation. Hey, it works.
|
We dragged out the boat and plopped
it into about 6" of water. Empty, it bobbed in the calm water with both stern and bow
slightly off the lake surface... IT FLOATS! Securely
captured inside his life jacket, Chistopher jumped into the boat. He had earlier decided
that Papa's boat should be named "Sea Lion" if it floats, and "Fish"
if it doesn't. He has an unusual sense of humor. At this point, I told him that this was really his boat and he
could name it anything he wanted. After the look of disbelief disappeared from his face,
he jumped up throwing his hands in the air while grinning as only a 6-year old can. |
| "SEA LION" and its new
owner were launched. I shoved ‘em off with my son, David, and Captain Christopher as
the only passengers. I wanted more pictures, so Dave rowed it around in a large circle
about 20 yards off shore. Christopher was already giving orders from the stern seat. With
no fishing poles along, Capt. Christopher decided that exploring and duck watching were
the things to do. |

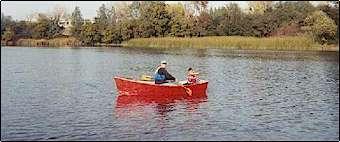

It floats! It floats flat, too.
Christopher is kneeling on the seat and leaning out over the rail behind his dad. BTW, the
oars worked great. The next ones will be made with ½" ply blades.
|
Dad and new owner in the stern. You
can just see the bow about 2" clear of the surface. The boat rows effortlessly. It
must be the custom oars. Meanwhile, I’m stuck on shore taking pictures. When is it my
turn?
|
At this point, watching the two of
them in this little red boat with it’s ugly oars, I knew I had helped create a
childhood memory that will outlast both his dad and me. Not a bad return on my investment
of making a little wooden boat. |

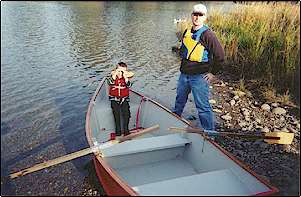

Pre-launch
celebration. You can see we are not big on festivities and fanfare. Check out the
custom-made oars; genuine scrap redwood and gusset reinforced ¼" ply. I
especially like the imported "leathers"(made in China duct tape) Hey, it works.
Eventually, an electric trolling motor will be the primary propulsion. The bow and stern
seat screws were not counter-sunk so we can easily remove them and lift off the seat
tops. I can’t remember who built the PS with an electric battery stowed in the
bow seat with the cable running aft through PVC conduit to a plug in the stern seat.
Thanks for the great idea and we are going to use it when the motor is purchased. |
 |
These
two seats are presently stuffed with cut to fit foam insulation. The boat’s finish
consists of two coats of epoxy, two coats Home Depot latex primer, two coats of HD
porch/deck paint. Each epoxy coat and paint coat was lightly sanded. The red paint is the
pits; glad it doesn’t show in these pics. I splurged on the gunwale and inwale:
¾" Philippine Mahogany with three coats of cheap marine high gloss varnish. |
My Turn to Row With Dave in the stern and Captain
Christopher in the bow taking pictures with his grandmother's disposable camera, we shoved
off again and headed for "open water." Good thing this isn't a sailboat -- dead
calm. I was somewhat disappointed that we didn't have a bit of wind and waves. Maybe next
time. |
| With slightly less than 500 pounds of people on
board, Sea Lion's bow and stern settled into the water with more than sufficient
freeboard. It rowed straight and turned on a dime giving about 5 cents' change. If this
boat will handle a 2-foot swell and over-powered motor boat wakes, we will have a serious
fishing craft. (There's this Salmon River in Oregon where Dave and Captain Christopher
fish.) |

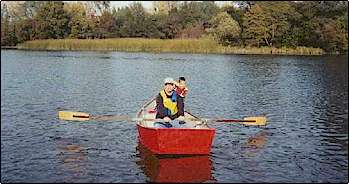

The builder finally gets a chance to
row. This also verifies that three people do fit, but it's crowded. We have about 485# of
people on board. The boat lost about 3" of freeboard. In other words, the bow and
stern are in the water. It still rows effortlessly. No wind or waves. Maybe next time I
can really test it out.
|
| Dave stood up and did a pretend cast. SEA LION
hardly rocked. I like this boat. Size limits its people/gear capacity: two adults, or one
6-year old Captain and his dad or Papa, is max for comfort, especially since the male
adults in this family are all over 6' and 200#.
SOMEONE PLEASE TELL PHIL BOLGER THAT HE DESIGNED A REALLY WICKED GOOD BOAT. Damage Control. |
|
The rowing seat separated from its
frame on the forward end, starboard side. No big deal, but I will use glue and screws to
repair it. The hull paint is awful; we will sand and use a proper paint for that repair --
Interlux epoxy or something similar for a lasting coat.. It was a great
launch. Oh, the oars? I'm ordering them this week.
Jim C |
| NOTE: Christopher's boat is the first of three
10.5' boats I'm building for each of my fishing grandchildren. The boat was designed by
Phillip Bolger, a naval architech in Glouster, MA. His name for the design is "Pointy
Skiff". I am part of a loosely-organized email group with about 430 international
members. We all build and/or write about Bolger designs - he has done 100's of boats of
all sizes and types.
Sea Lion took about 3 months to
complete. It's built out of 1/4" and 3/8" plywood, epoxy coated with fiberglass
taped joints Marine glue and screws are also used throughout the construction. |
One happy kid! Captain
Christopher in command. I think I better cut down those oar handles a little more. The
smooth seam where the bow seat meets the hull sides is done with exterior painter’s
caulk. Even if we weren’t going to take up the seats for further modifications, I
would still use this. You can make a perfect fillet and it can be removed and re-done
anytime. |
|
